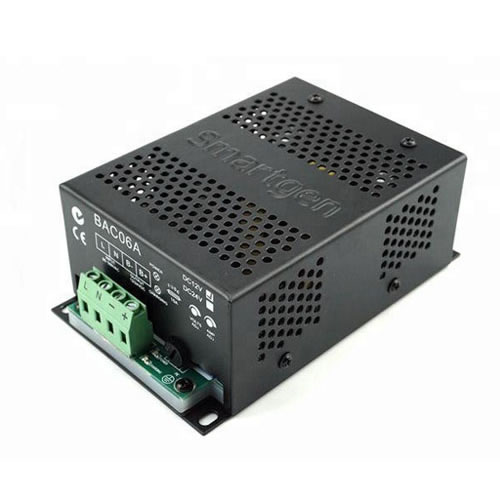

Smargen Generator 12V 6A Automatic Battery Charger BAC06A
  • Model: BAC06A
  • Origin: China
  • Warranty: 1 Year
  • In stock: Yes
  • Product description: Smargen Generator 12V6A 24V3A Automatic Battery Charger, Generator Float Charger, Model Number BAC06A?
Smargen Generator 12V 6A Automatic battery charger BAC06A

Using two steps charge methods (After that first constant-current constant voltage), fully automatic rechargeable battery charge according to the characteristic,can prevent from the lead acid cell overcharge,to the maximum extent increase battery life.

With short circuit protection function.

Battery voltage and current adjustable can be adjusted.

State LED display; ac power battery indicator.

Using switch power source structure, wide range of input voltage, small volume, light weight, high efficiency.

According to the characteristic of rechargeable batteries,second stage by charging method,charging pattern is changed "constant flow type", namely, the battery voltage under default, charging for constant-current charging, in the battery voltage higher default values,with the battery voltage recharge current increase and decrease, until it preset default current charge to float, after filling pattern, then gradually reduce battery charging electric current, voltage and gradually achieve constant voltage value, when the preset recharge current less than 0.3 when the battery has a full battery indicator, and then out of the storage battery charging current only offset, and long battery propertyof battery charger is harmless, which can maintain full status, and the battery can ensure the battery life.

Model

Smartgen Generator Automatic Battery Charger BAC06A

The battery voltage

12V

24V

Maximum charging electric current

6A

3A

Battery voltage adjustment range

13~14.5V

26~29V

Charging current adjust scope

3~7A

1.5~3.5A

Ac input voltage

180~280VAC

Ac frequency

50/60Hz

The power output and input 220V (maximum current)

120W

115W

No-load power consumption

Less than 3W

Efficiency

More than 80%

More than 85%

Working temperature

-25~60°C

Storage temperature

-30~85°C

Weight

0.65kg

Shape dimension

143x92x52(LxWxH)mm

Different characters for BAC06A, BAC06CF, BAC06H

SMARTGEN Charger BAC06A

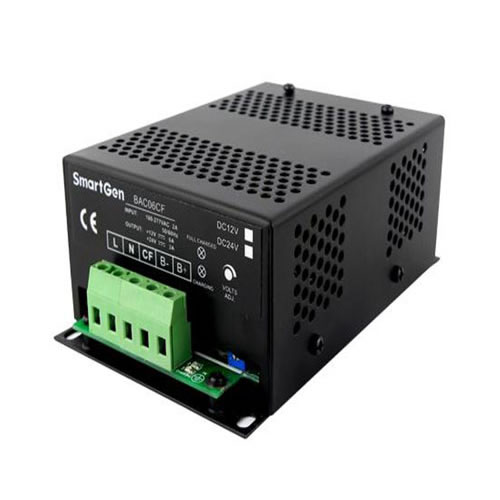

SMARTGEN Charger BAC06CF

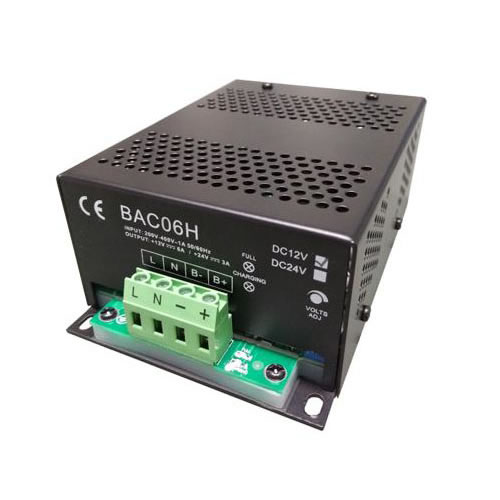

SMARTGEN Charger BAC06H

Floating Charge

Charging failure output

High voltage charger

Two stage charge 12V6A / 24V3A

12V6A / 24V3A

Input voltage can be up to 480V
